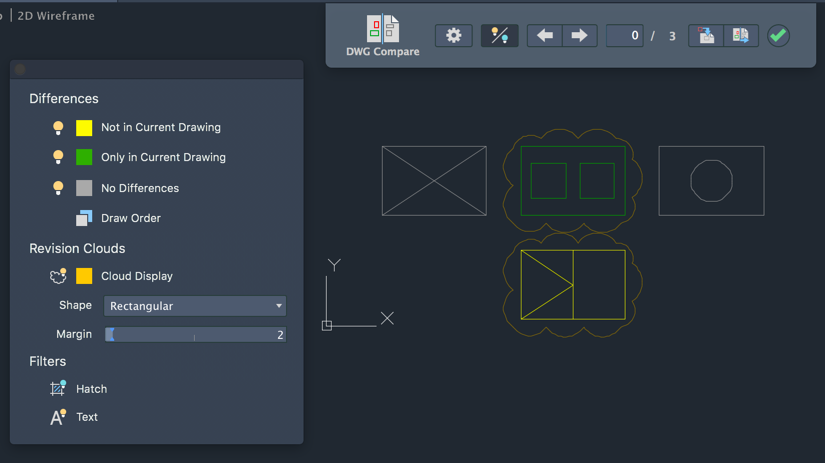

Imports objects from the compared file into the current drawing. Switches the visual effect of objects in the host drawing during an xref comparison.Įnables the comparison between an xref and the referenced drawing file.Ĭloses the Compare toolbar and exits the comparison.Įxports the comparison results into a new drawing, called a snapshot drawing, and opens the drawing. Sets the size of the folder where the backup xref file is stored. Specifies the path where the backup xref file is stored. This system variable is turned off by default.Ĭontrols whether trimming and extending to hatches with Quick mode is limited to the edges of the hatches or includes the objects within hatch patterns.Ĭontrols whether the TRIM and EXTEND commands use streamlined inputs by default. Stores the current approximate arc length for revision clouds.Ĭontrols whether revcloud arcs are created with varying or uniform chord lengths.Ĭontrols automatic regeneration in real-time panning and zooming operations.Ĭontrols whether you can select text or mtext objects within the gaps or spaces between the characters. Reports whether the Drawing History palette is open or closed.Ĭontrols the default AutoLISP development environment started with the VLISP command. Sets the path where the recently inserted or created blocks are stored.Ĭontrols the visibility of objects that are not used in the xref comparison. Zooms to the previous change set of the xref comparison result.
Zooms to the next change set of the xref comparison result. Inserts a drawing or block into the current drawing.Ĭompiles one or more AutoLISP (LSP) source files into an application (VLX) file that can be distributed to users and protect your code.Ĭommand line version of the PAGESETUP command intended for overriding the settings of page setups in scripts and other customization.Ĭontrols the approximate chord-length for the arcs in a selected revision cloud.Ĭompares an attached xref with the latest state of the referenced drawing file, highlighting the differences with color within revision clouds.Ĭloses the Xref Compare toolbar and ends the comparison. Opens the Drawing History palette, which displays a version history of the current drawing as maintained by a supported cloud storage provider.
Breaks the selected object into two objects at a specified point.
